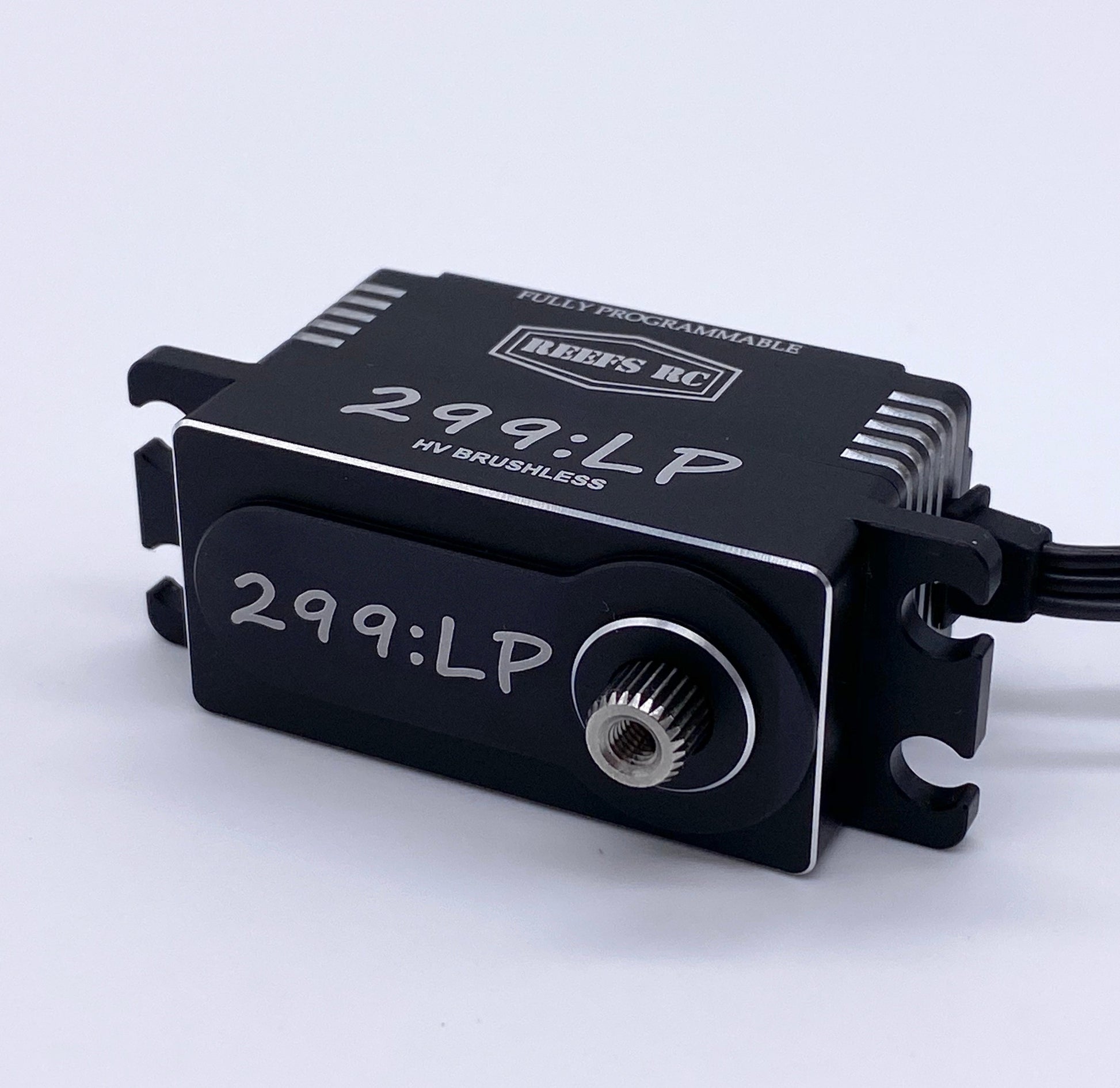

- High Torque High Speed Brushless Motor
-
Water Resistant
- Magnetic Angle Sensor
- Pulse Width Modulation Control
-
Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
- Voltage: 4.8V - 8.4V
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings / Weight: 2.0oz / 57.2g

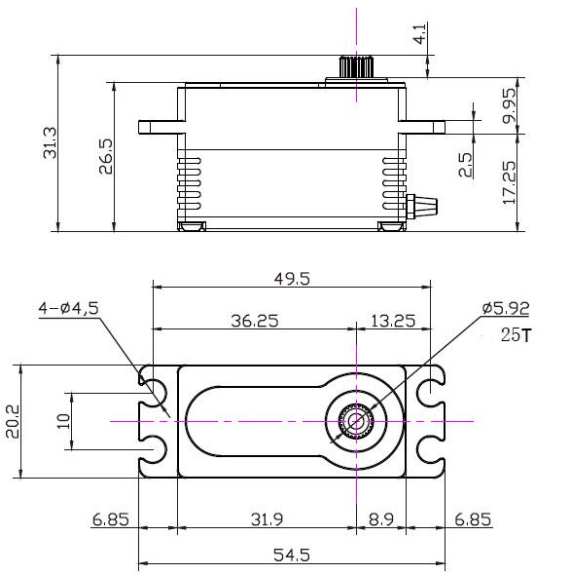

- Dimensions: 1.6 x .79 x 1.0 (LWH) 40.8x20.2x26.5mm
- Torque: 278oz (20kg)@ 6v/ 299oz (21.5kg)@7.4v/ 313oz (22.5kg)@8.4v
- Speed: .07sec @6v/.06sec @7.4v/.057sec @8.4v
- Spline: 25T /
- Dead Band Width: 2¦Ìs
UnloadCurrent
320mA@4.8V
380mA@6.0V
430mA@7.4V
480mA@8.4V
LoadingCurrent
3300mA@4.8V
3600mA@6.0V
4100mA@7.4V
4200mA@8.4V
For programming, the USB Link is required.
Item# REEFS24
